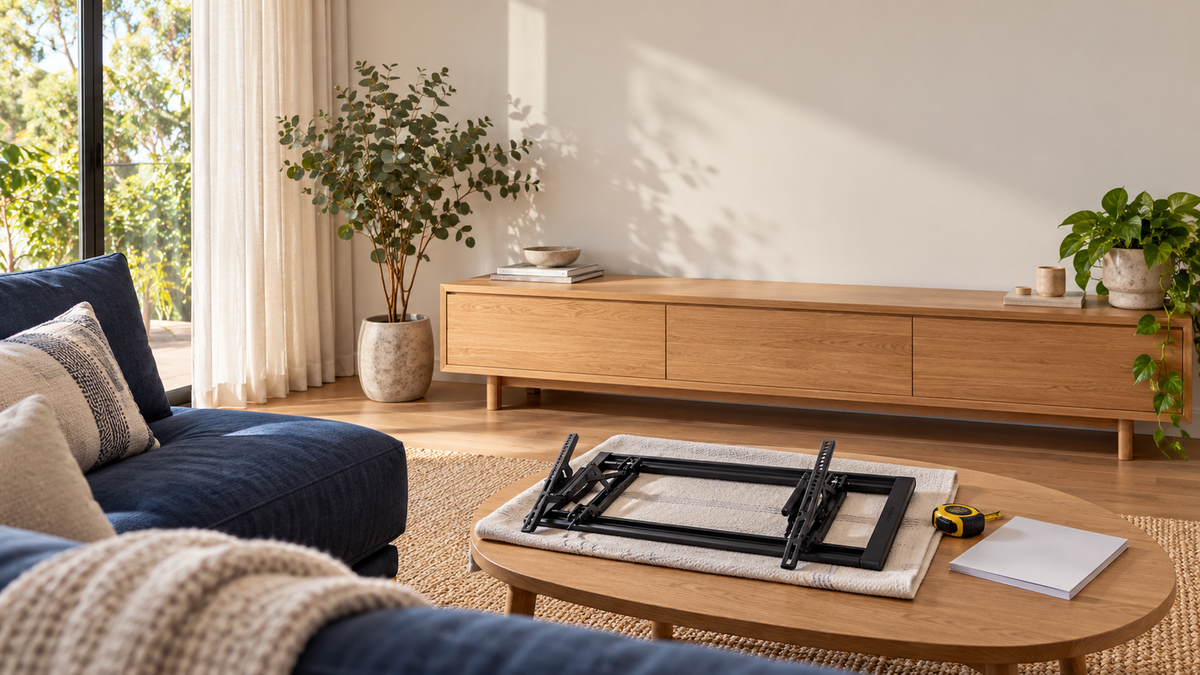

SANUS VLT7-B2
For a compatible TV viewed mainly from the sofa, the extending tilt design is a useful middle ground. Choose the fixed VLL5-B2 if you need no angle adjustment, or the full-motion VLF928-B2 if your room needs more reach and swivel.
Mounting a television at the right height sounds simple until the screen, sofa, soundbar, cabinet and wall all start competing for space. The usual advice to place the centre of the TV at eye level is a good starting point, but it is not a universal measurement. Your seated eye height, screen size, viewing distance, posture and room layout all matter.
This Australian TV placement guide explains how to calculate a comfortable height, why very large televisions often need to sit lower than expected, and what to check before anyone drills into the wall. It also covers fireplaces, soundbars, rental properties, cable concealment and the situations where a qualified installer or licensed electrician is the sensible choice.
The short answer
For a normal lounge room, start by placing the centre of the screen close to the seated eye height of the main viewers. Samsung Australia uses 42 inches, or about 107 centimetres from the floor to the centre of the TV, as a general starting point. That is useful guidance, not a rule for every sofa and every person.
The better method is to sit naturally in your usual viewing position, measure your eye height from the floor, and use that as the initial screen-centre height. Then make small adjustments for a reclined posture, multiple viewers, a soundbar or furniture. If a fireplace or tall cabinet forces the TV dramatically above that line, reconsider the location before accepting an uncomfortable result.
The mount shortlist at a glance
| Mount | Approach | Best reason to choose it | Listed price |
|---|---|---|---|
| VLT7-B2 | Extending tilt | Adjust the angle and reach connections more easily. | $185 |
| VLL5-B2 | Fixed | A close-to-wall option for a seat directly in front. | $160 |
| VLF928-B2 | Full motion | Extra reach and swivel for an open-plan room. | $483 |
A nominal screen-size range does not guarantee fit. Check the exact VESA hole pattern, television weight without its stand, any attached accessories and all requirements in the TV and mount instructions. These examples do not cover every TV, including every 98-inch model discussed below.
How we chose these examples
We compared manufacturer information and Australian retailer listings to illustrate fixed, extending-tilt and full-motion approaches. The VLT7-B2 is the featured option for its useful adjustment; the VLL5-B2 suits a simpler fixed setup, and the VLF928-B2 addresses rooms that need extra movement. This is a researched guide, not a hands-on load test or an assessment of your wall.
Which mount approach suits your room?
SANUS VLT7-B2 Advanced Tilt 4D TV Wall Mount
Our first option to compare for a compatible lounge-room TV.
The VLT7-B2 gives a compatible television downward and upward tilt, modest left/right swivel and up to 17.3 cm of extension. That extra movement can make cable access easier than a close fixed bracket and lets a larger screen tilt without immediately meeting the wall.
Choose it when the main seat faces the TV and you want useful adjustment without a long full-motion arm. It still needs the correct VESA pattern, weight rating, screw depth and verified wall structure. Tilting cannot compensate for a badly chosen height or make a fireplace installation thermally safe.
Why consider it
- Useful adjustment for a mostly front-facing seat
- Extension improves access behind the screen
What to check
- Less swivel reach than a full-motion mount
- More wall clearance than a fixed bracket
SANUS VLL5-B2 Low Profile TV Wall Mount
The simpler option when the viewing position is already right.
The VLL5-B2 is a fixed-position mount that holds a compatible screen approximately 2.3 cm from the wall. Side-to-side positioning helps centre the TV within the limits of the installed wall plate. It suits a room where the main seats face the screen and the chosen height does not need downward tilt.
The low profile leaves less working room for rear-facing plugs and stiff cables. Check the TV’s ventilation and connector clearances before choosing it. A cheaper, simpler bracket can be the better decision when you do not need movement; it does not reduce the need to verify the wall and fasteners.
Why consider it
- Close-to-wall appearance
- Lower listed price than the two adjustable options
What to check
- No viewing-angle tilt or swivel
- Tight rear clearance needs cable planning
SANUS VLF928-B2 Advanced Full-Motion 4D + Shift TV Wall Mount
Choose the extra movement only when your room needs it.
The VLF928-B2 extends up to 71.1 cm and provides tilt and swivel for compatible televisions. Its Shift system offers up to 20.3 cm of total vertical adjustment after installation. This is useful when one screen must serve different seating positions or when modest height fine-tuning matters.
It is larger, costs more and places greater leverage on its supporting wall when extended. Treat the quoted height movement as a total adjustment range, not 20.3 cm in each direction. Confirm the exact TV compatibility, permitted wall construction and cable slack throughout the intended motion.
Why consider it
- Greater reach for different viewing positions
- Post-installation height adjustment
What to check
- Higher purchase price
- Extension increases demands on the wall
Why there is no single correct mounting height
Two homes can have the same 65-inch television and need different mounting heights. A low modular sofa may put the viewer's eyes around a metre from the floor, while an upright armchair or bar-height seat may place them much higher. A person reclining in bed looks towards a different part of the wall from someone sitting upright in a lounge.
Screen size also changes where the bottom edge lands. If the centre remains at eye level, a larger screen extends farther both above and below that point. This is why a properly positioned 85-inch TV can appear surprisingly close to a low entertainment unit. Moving it higher merely to create a larger decorative gap can make every programme less comfortable to watch.
Measure your real seated eye height
Do not begin with the wall. Begin with the seat.
- Sit in the place from which you watch most often.
- Use your normal posture rather than sitting unusually straight for the measurement.
- Have another person measure vertically from the floor to your eyes.
- Repeat the measurement for another regular viewer if appropriate.
- Use the average, or favour the person who spends the most time watching.
If the household uses several seats, measure them rather than guessing. A difference of a few centimetres is not important. A large difference between a low sofa and an upright chair may justify a compromise position or a mount with a modest downward tilt.
Calculate the screen centre and bottom edge
Once you know the chosen screen-centre height, estimating the top and bottom edges is straightforward:
- Top edge height = screen-centre height + half the screen height.
- Bottom edge height = screen-centre height − half the screen height.
A modern 16:9 television has an approximate visible screen height in centimetres equal to its diagonal size in inches multiplied by 1.245. The exact cabinet and bezel dimensions vary, so use the manufacturer's dimension drawing before drilling.
For example, a 65-inch screen is roughly 81 centimetres high. If your chosen centre is 105 centimetres from the floor, the visible bottom edge will be around 65 centimetres high and the top edge around 145 centimetres high.
Approximate heights for common TV sizes
The following examples assume a screen centre 105 centimetres above the floor. They are planning estimates, not drilling measurements:
| TV diagonal | Approx. screen height | Approx. bottom edge |
|---|---|---|
| 43 inches | 54 cm | 78 cm |
| 50 inches | 62 cm | 74 cm |
| 55 inches | 68 cm | 71 cm |
| 65 inches | 81 cm | 65 cm |
| 75 inches | 93 cm | 58 cm |
| 85 inches | 106 cm | 52 cm |
| 98 inches | 122 cm | 44 cm |
These figures reveal an important point: as the screen becomes larger, its lower edge should generally move down if the centre remains at a comfortable level. Do not automatically align the bottom of a new 85-inch TV with the bottom of the 55-inch model it replaces.
How far above eye level is acceptable?
Eye level is a useful centre line, not a millimetre-perfect target. A modest upward viewing angle is normally workable, particularly when viewers recline slightly. Problems usually arise when furniture, a mantel or a decorative layout pushes the entire screen conspicuously above the natural line of sight.
Before mounting, mark the proposed outline with painter's tape and watch the empty rectangle from your normal seat. Look towards its centre for several minutes, not several seconds. If you need to hold your chin up or feel that you are looking at the upper part of a wall, the screen is probably too high.
Viewing distance matters as well
A television that is slightly high feels more severe when viewed from close range because the vertical angle is steeper. From farther away, the same height difference creates a smaller angle. Height and distance therefore need to be considered together.
Sony lists a minimum distance for 4K viewing of about 1.5 times the screen's vertical height. That is a resolution-based minimum, not a compulsory lounge layout. Sony also publishes approximate distances based on 30-degree mixed-use and 40-degree cinema fields of view. In practice, choose a distance that makes the screen immersive without forcing you to scan around it or making lower-resolution content unpleasant.
Large televisions often belong lower than people expect
An 85-inch or 98-inch screen can dominate a wall. The temptation is to centre it within the empty wall area, but the centre of the wall is rarely the same as the viewers' eye line. A screen is functional equipment, not a painting.
Check that a low placement still leaves room for the soundbar, cabinet ventilation and any upward-firing speakers. If the screen physically cannot fit at a comfortable height because the cabinet is too tall, replacing or removing the cabinet is often a better answer than raising the TV.
The mounting holes may not be at the screen centre
This is one of the easiest installation mistakes to make. The VESA mounting holes on the back of a television are not necessarily centred vertically. The bracket arms and wall plate also introduce their own offset.
Do not place the wall plate at the intended screen-centre line unless the mount instructions specifically calculate it that way. Assemble the bracket arms on the TV, measure the exact distance from the desired screen edge or centre to the wall-plate engagement point, and follow the supplied template. Sony's installation guidance similarly tells owners to account for the screen centre and the mounting offset.
Fixed, tilting and full-motion mounts
A fixed mount keeps the television close to the wall and is a good choice when the screen can be positioned correctly and the seating is directly in front. It is visually clean, but access to ports can be tight.
A tilting mount allows a small downward angle. It can help when the TV must sit slightly higher, and it can improve access to some connections. Tilting does not make an excessively high position ideal; it only aims the screen towards the viewer.
A full-motion mount can swivel and extend, useful for an open-plan room or an awkward corner. Extension increases leverage on the wall, however, so the wall structure, fasteners, bracket rating and installation quality become even more important. Make sure the mount is rated for the television's weight and VESA pattern in every intended position.
Check VESA compatibility and weight ratings
VESA dimensions describe the horizontal and vertical spacing of the mounting holes. Matching the nominal screen size is not enough: the mount must support the exact hole pattern, total television weight and any relevant extension limits.
Use the exact model's manual rather than specifications for a similar model sold overseas. Sony Australia advises checking the compatible bracket and correct screw dimensions for the TV, and says the wall must have adequate load-bearing strength. Never substitute longer screws casually; screws that enter too deeply can damage the television.
The wall is part of the installation
A mount rating tells you what the metal bracket can carry. It does not prove that your wall can carry the bracket and TV.
Australian homes may have timber or steel framing, plasterboard, brick, concrete, masonry veneer or more complicated layered construction. Renovations can leave unexpected cavities, services and non-structural linings. The correct fixing system depends on the verified substrate, the TV weight and the forces created by the mount.
Sony states that the supporting wall should be capable of carrying multiple times the television's mass and recommends a licensed contractor where strength is uncertain. This is not a place to rely on an unidentified wall anchor, a social-media shortcut or a fastener rating that does not match the actual wall.
Plasterboard is not a structural diagnosis
Seeing plasterboard tells you what the surface is, not what is behind it. For a substantial television, especially on an extending mount, the installer needs to identify suitable structure and the location of electrical wiring, plumbing or other services.
Generic hollow-wall anchors may be suitable for some light applications, but their existence is not proof that any television can safely hang anywhere. If the intended position does not line up with suitable structure, a qualified installer can assess options such as correctly installed backing or a different mount. Do not improvise a high-consequence load.
Brick, concrete and apartment walls
Masonry can provide strong support when it is sound and the correct fixing method is used, but not every brick, block, render layer or mortar joint behaves the same way. A full-motion bracket also loads the wall differently from a close fixed mount.
Apartment residents should check strata or body-corporate rules before drilling. A wall can contain shared services, fire-rated construction or acoustic systems that must not be compromised. The fact that the wall feels solid is not sufficient permission or technical information.
Mounting above a fireplace
Above-fireplace installations are popular in photographs and frequently poor in daily use. The mantel often pushes the screen far above eye level, while heat can conflict with the television manufacturer's operating requirements. Samsung Australia highlights heat, ash and the high viewing position as concerns when considering a TV above a working fireplace.
If no other location is possible, obtain the fireplace manufacturer's clearance requirements, the television's temperature and ventilation limits, and a professional assessment of the wall and flue arrangement. A mantel or downward-tilting mount does not automatically solve heat exposure. A pull-down mount may improve the viewing angle in some rooms, but only when the structure, clearances, cable movement and thermal conditions are suitable.
Control glare before choosing the exact wall
The most comfortable height will not rescue a screen facing a bright window. Inspect the room at the times you normally watch, including late afternoon when low Australian sun can be difficult. Look for direct reflections from windows, glass doors and overhead lighting.
A full-motion or tilting mount may reduce some reflections, but window coverings and careful wall selection are more reliable. Do not place the television so high merely to escape one reflection without testing whether the new angle creates others.
Allow for the soundbar
Plan the television and soundbar as one arrangement. Leave the clearance required by the exact soundbar instructions, particularly for models with upward-firing drivers. Do not block the bottom of the picture, the TV's infrared receiver, ventilation openings or downward-facing controls.
If the soundbar will attach to the TV mount, include its weight and bracket compatibility in the plan. An attached soundbar can move with a full-motion screen, which may be useful. If it sits on furniture, confirm that the screen will clear it without forcing the TV unnecessarily high.
Check the entertainment unit before drilling
A wall-mounted screen still needs a relationship with the furniture below. Confirm:
- the cabinet is low enough for the chosen screen position;
- doors and lids can open without hitting the TV or soundbar;
- consoles and receivers have adequate ventilation;
- the cabinet is wide enough to look balanced without dictating the screen height;
- cables can reach without hanging under tension; and
- the cabinet itself is secured where toppling is a risk.
Leave ventilation and service access
Follow the television manual's clearance requirements. Ultra-slim mounting can look excellent but may restrict airflow, bend stiff HDMI leads or make ports inaccessible. Side-facing connectors are easier to reach than rear-facing ones, and some premium televisions use an external connection box that needs its own ventilated location.
Think about future service too. Can the screen be removed without dismantling cabinetry? Can a streaming device, antenna lead or console be changed? A neat installation should remain maintainable.
Power and concealed cables in Australia
A hanging power board or loose cable inside a wall cavity is not a safe substitute for a properly designed installation. Fixed electrical wiring and new power points must be handled in accordance with the rules in your state or territory, generally by a licensed electrician. WorkSafe Queensland and NSW Government guidance both direct consumers to licensed electrical workers for this work.
If you want a concealed result, plan the power point, certified in-wall AV cables, conduit, wall plates and separation between mains and signal cabling before mounting. The electrician or qualified installer should decide what is suitable for the particular wall. Do not assume the detachable power lead supplied with a television is approved to be buried in a cavity.
Future-proof the cable route sensibly
HDMI plugs are bulky and standards evolve. A serviceable conduit or accessible route can be more useful than permanently trapping today's exact cable behind a finished wall. Allow for the bends required by high-bandwidth HDMI leads and avoid crushing them behind an ultra-slim bracket.
Consider antenna, Ethernet, HDMI eARC, console inputs and any external TV connection box. Extra unused cable is not useful if it is tightly coiled, sharply bent or impossible to replace. Plan for the equipment you genuinely expect rather than filling the wall with speculative leads.
Renters need written permission
Wall mounting normally involves holes and may involve electrical work, so renters should check the lease and obtain written approval from the landlord or agent before proceeding. NSW Government guidance, for example, says changes may be made when the agreement permits them or the landlord provides written consent. Requirements differ between jurisdictions and circumstances.
Agree on who will install the mount, what happens to it at the end of the tenancy, and whether the wall must be restored. A freestanding TV secured against toppling may be a more practical alternative if permission is refused.
Do not forget toppling safety
A correctly mounted television removes the risk of the screen tipping from its stand, but the cabinet below can still topple. The ACCC and state consumer-safety agencies advise securing toppling hazards, particularly in homes with children.
Keep climbing temptations such as toys and remotes away from the top of furniture, follow the anchoring instructions supplied with cabinets and televisions, and do not assume a heavy unit cannot fall. In a rental, discuss safe anchoring and written permission with the agent or landlord.
Bedrooms need a different calculation
Bedroom viewing is usually more reclined. Placing the screen at ordinary seated eye height may put it behind the foot of the bed or require the viewer to look down uncomfortably. Lie in the position you actually use, support your head normally, and have another person identify your relaxed line of sight.
A somewhat higher screen with downward tilt can be appropriate here. Check that the mount and television support the intended angle, and avoid an extreme position near the ceiling. If viewers watch both sitting and lying down, choose a compromise and test it with a taped outline.
Kitchens, gyms and standing areas
A screen watched mainly while standing should be based on standing sightlines, not lounge-room measurements. Kitchen installations must also avoid heat, steam, grease and water, while gym screens need to suit the viewer's body position on the equipment being used.
Identify the primary task and viewing position. A television glanced at for news while cooking has different requirements from a screen watched through a full film. Safety, appliance clearances and the environment take priority over a generic height formula.
Multiple rows and open-plan rooms
With a second seating row, make sure the front row does not block the bottom of the screen. A slightly elevated screen or tiered seating may be justified, but test from every important seat. For open-plan rooms, a swivelling mount can serve more than one zone, although picture quality at wide angles depends on the television panel.
Choose a primary viewing position rather than trying to make every location perfect. A TV aimed equally at the sofa, dining table and kitchen often ends up ideal for none of them.
Accessibility and individual comfort
Standard formulas may not suit someone with limited neck movement, a particular wheelchair position, bifocal or progressive lenses, or other individual requirements. Use the person's actual comfortable posture and viewing line. If necessary, seek advice from an appropriate health professional or accessibility specialist.
Controls, ports and connected equipment should also remain reachable. A visually neat installation is not successful if the intended user cannot operate or maintain it comfortably.
Preview the full-size outline
Painter's tape is one of the cheapest and most valuable planning tools. Mark the exact outer dimensions of the proposed television, not merely a dot at its centre. Add the soundbar, cabinet and any visible cable cover.
View the outline from each important seat in daylight and at night. Check sightlines, glare, door movement and circulation paths. Photograph the mock-up; proportions that seem acceptable in person can become obvious in a photo. Leave it in place for a day if you are uncertain.
Common mounting-height mistakes
- Centred on the wall: the architectural centre is not necessarily the viewing centre.
- Copied from another house: sofa and eye heights differ.
- Bottom edge kept constant: larger screens then become progressively too high.
- Bracket plate treated as the TV centre: VESA offsets make the final position wrong.
- Fireplace treated as compulsory: the result may be too high or too hot.
- Soundbar added later: it blocks the screen or forces a remount.
- Wall strength assumed: a bracket rating is mistaken for a complete structural assessment.
- Power improvised: an ordinary lead is hidden where it should not be.
- Only one seat tested: other regular viewers get a poor angle.
- Ports forgotten: cables no longer fit once the TV sits close to the wall.
A practical planning sequence
- Choose the primary seat and measure natural eye height.
- Confirm the exact television dimensions, weight, VESA pattern and ventilation clearances.
- Estimate the screen-centre, top-edge and bottom-edge positions.
- Mark the complete outline with low-tack painter's tape.
- Test the position from every regular seat at typical viewing times.
- Add the real soundbar, cabinet and equipment clearances to the mock-up.
- Identify glare, traffic paths, doors, heat and other environmental issues.
- Have the wall construction, services and suitable fixing points verified.
- Plan compliant power and replaceable signal-cable routes.
- Calculate the mount offset using the exact bracket and TV instructions.
- Obtain rental, strata or body-corporate approval where required.
- Use appropriately qualified trades for structural uncertainty or electrical work.
When professional installation is worth it
Professional help is particularly sensible for very large or expensive televisions, full-motion mounts, unknown wall construction, masonry, steel framing, fireplace locations, high installations and concealed cabling. It is also worthwhile when the TV requires several people to lift safely.
Ask the installer to explain the verified wall structure, fasteners, bracket rating, cable plan and final screen-centre height before work begins. A competent installer should be willing to pause while you confirm the taped position rather than choosing a convenient height without consultation.
Questions to ask an installer
- What structure will carry the load?
- Is the bracket rated for this exact weight, VESA pattern and extension?
- Where will the screen centre and bottom edge finish?
- How was the bracket offset measured?
- Will every port remain accessible?
- How will power and AV cables be installed compliantly?
- Are there ventilation or fireplace-clearance concerns?
- Who is responsible for electrical work?
- What workmanship warranty and documentation are supplied?
Consumer protections still apply
When purchasing a television, mount or installation service in Australia, consumer guarantees under the Australian Consumer Law may apply. Products should be of acceptable quality, fit for disclosed purposes and match their description, while services should be provided with due care and skill.
Keep the product specifications, quote, invoice and written correspondence. If you tell a retailer or installer the TV model, wall type and intended use, record that information. Manufacturer warranties are additional to, and do not replace, rights that may exist under the Australian Consumer Law.
The final decision
For most Australian lounge rooms, place the centre of the television close to the viewers' natural seated eye height. About 107 centimetres from the floor is a reasonable starting point, but measuring your own sofa and posture produces a better result. As the television gets larger, expect the lower edge to move down rather than the centre to move up.
Mock up the full screen outline, account for the exact bracket offset, soundbar and cabinet, and verify the wall structure before drilling. Avoid letting a fireplace or decorative wall symmetry dictate an uncomfortable position. Use a licensed electrician for relevant electrical work and a qualified installer whenever the load, wall or cable route is uncertain.
Official Australian resources and product checks
- Samsung Australia: things to consider before wall mounting a TV
- Sony Australia: determining TV mounting height and position
- Sony Australia: compatible wall-mount brackets and installation checks
- Sony Australia: television viewing distance guidance
- WorkSafe Queensland: electrical work and licensed electricians
- SafeWork NSW: electrical safety information
- NSW Government: making changes to a rental property
- ACCC: reducing toppling-furniture injuries
- ACCC: consumer rights and guarantees
- Sony: viewing distance and field-of-view guidance
- SANUS: VLT7 specifications and installation documents
- SANUS: VLL5 specifications and installation documents
- SANUS: VLF928 specifications and installation documents
- WorkSafe Queensland: electrical licence requirements
- NSW Government: electrical safety in the home
Guide updated 28 September 2026; product pages and the key official sources were reviewed on that date. Electrical, tenancy, strata and building requirements can vary by jurisdiction and property. This guide provides general information and is not a structural or electrical assessment.
Product photos: SANUS. The taped-outline scene is a generated illustration. Product prices quoted above were listed at Bing Lee when checked and may change; confirm the exact model, current instructions and delivered price before buying.
Need a second opinion?
Ask Adrian before making the decision.
Tell us what you are choosing between, what matters most to you and what you have already checked.
