Choose a PC case that fits your build
The best PC case is not necessarily the largest or smallest model. It is the smallest well-ventilated case that comfortably fits your motherboard, graphics card, cooler, power supply, storage and future upgrades. For most first-time builders, an airflow-focused ATX mid-tower provides the easiest balance of compatibility, cooling and manageable size.
Three case sizes to consider
These cases illustrate three different approaches. Choose the format that fits your components and available space; the pictures are individually scaled and do not show their relative sizes. These are specification-based examples, not hands-on test results. Confirm current retailer availability before ordering.
How these three cases suit different builds

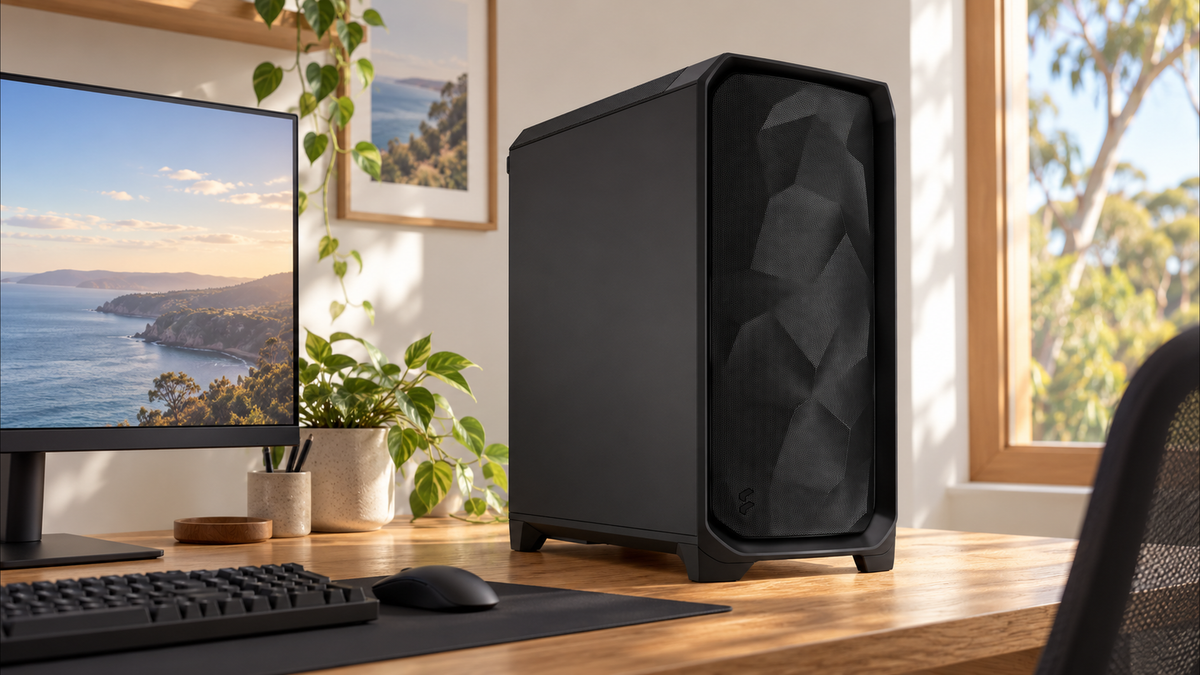

Fractal Design Meshify 3 Black Solid
The Meshify 3 Black Solid (FD-C-MES3A-01) is the conventional tower option here. Its mesh front and three included Momentum 14 fans make it a useful example of an airflow-focused case. The solid side panel avoids a glass window. Fractal lists support for a top radiator up to 280mm or a front radiator up to 360mm; these are mounting options, not a guarantee that every cooling combination fits.
Why it may suit
- More working room than a compact mini-ITX layout.
- Ventilated front and three included fans.
What to consider
- Larger external footprint than the compact choices.
- A front radiator reduces the available graphics-card space.
ASUS Prime AP201 White Mesh
The white mesh AP201 is a 33-litre micro-ATX case with removable mesh panels. It accepts standard ATX power supplies and supports graphics cards up to 338mm and CPU air coolers up to 170mm, subject to the complete build layout. ASUS also lists radiator support up to 360mm. Check PSU position, cable space and cooling clearances together. This is the mesh version, not the separate tempered-glass variant.
Why it may suit
- Micro-ATX size without requiring an SFX power supply.
- Mesh panels and tool-free access.
What to consider
- Does not accept an ordinary full-size ATX motherboard.
- Maximum GPU, PSU and radiator specifications need checking together.
Cooler Master MasterBox NR200P V2 Black
The NR200P V2 Black (NR200PV2-KCNN-S00) illustrates the extra planning involved in a compact build. Its vertical graphics-card layout uses an included PCIe 4.0 riser, and the case supports top-mounted liquid cooling. The listed CPU-cooler clearance is only 67mm, so it is not a home for a conventional tall tower air cooler. Follow the V2 manual for the PSU, GPU and radiator combination; do not use the original NR200P or NR200P MAX specifications.
Why it may suit
- Compact mini-ITX layout with removable panels.
- Includes a PCIe 4.0 graphics-card riser.
What to consider
- Low CPU-cooler clearance limits air-cooling options.
- PSU, GPU cables and radiator space require careful planning.
PC case sizes at a glance
| Case type | Common motherboard support | Best for | Main compromise |
|---|---|---|---|
| Small-form-factor or mini-ITX | Mini-ITX | Very small desks, portability and compact premium builds | Tight clearances, harder cooling and more difficult assembly |
| Mini-tower or micro-ATX | Mini-ITX and micro-ATX | Affordable compact gaming, home and office PCs | Fewer expansion positions and reduced room for large cooling hardware |
| ATX mid-tower | Mini-ITX, micro-ATX and ATX | Most gaming, enthusiast and general-purpose builds | Larger footprint than many households require |
| Full-tower | ATX and selected E-ATX or larger boards | Large radiators, specialist workstations and extensive expansion | Expensive, heavy and space-consuming |
Motherboard sizes explained
| Motherboard | Approximate standard size | Typical expansion |
|---|---|---|
| Mini-ITX | 170 × 170mm | One full-size PCIe slot and commonly two memory slots |
| Micro-ATX | Up to 244 × 244mm | More slots than mini-ITX, with exact layouts varying |
| ATX | 305 × 244mm | Commonly up to seven rear expansion positions |
| E-ATX | Varies by manufacturer | Wider boards with extra space or workstation features |
A larger case often accepts smaller motherboards because compatible mounting positions are shared. The reverse is not true: an ATX motherboard will not fit an ordinary micro-ATX or mini-ITX-only case.
E-ATX requires extra caution because manufacturers do not always use the name for one identical width. Confirm the maximum supported board dimensions rather than relying on the E-ATX label.
Why an ATX mid-tower suits most builders
An ATX mid-tower usually provides room for mainstream graphics cards, standard ATX power supplies, several fans, a large air cooler and common radiator sizes. It is also easier to work inside than a compact case.
This extra room helps beginners route cables, reach motherboard headers and correct mistakes without dismantling half the computer. A mid-tower is therefore the strongest default even when the motherboard itself is micro-ATX.
When a micro-ATX case makes sense
A micro-ATX case can reduce cost and desk or floor space without creating the severe compromises of a tiny mini-ITX system. It suits builders using one graphics card, a normal number of drives and conventional cooling.
Before choosing one, check that the graphics card does not block every remaining expansion position and that the power-supply compartment leaves enough space for cables. Some short cases accept long cards but provide little room for front radiators or thick fans.
When mini-ITX is worthwhile
Mini-ITX makes sense when portability, a very small footprint or a particular compact design is central to the build. It is not automatically cheaper. Small motherboards, SFX power supplies, low-profile coolers and short premium cables can increase the total cost.
A compact build requires careful planning for:
- graphics-card length, height and thickness;
- power-supply type and cable clearance;
- CPU cooler height or radiator dimensions;
- memory and motherboard heatsink clearance;
- riser-cable compatibility where used;
- fan direction and ventilation;
- storage positions; and
- the order in which parts must be installed.
Small-form-factor cases commonly require more research and patience than conventional towers. A component fitting in theory does not guarantee that its cables, hoses or connectors can be routed safely.
When a full-tower is justified
A full-tower can be worthwhile for a very wide motherboard, several radiators, large reservoirs, many storage drives, specialist expansion cards or a workstation that must be easy to service.
For an ordinary gaming build, the disadvantages usually outweigh the benefits. Full-towers are heavy, expensive and awkward to place, while their additional empty space does not automatically improve cooling.
Measure the space outside the computer
Check the complete external width, height and depth before ordering. Allow room for:
- rear power, display and USB connectors;
- top and front airflow;
- opening side panels;
- removing dust filters;
- desk legs, walls and shelves;
- Wi-Fi antennas; and
- safe access to the power switch and front ports.
Do not place a ventilated case inside a tightly enclosed cabinet. The computer needs access to cooler room air and somewhere to exhaust heated air.
Graphics-card clearance
Graphics-card length is only one measurement. Modern cards can be tall, thick and heavy. Check all three dimensions and allow space for the power connector and its minimum safe bend.
Case specifications may quote maximum GPU length with front fans installed but not with a radiator. A front radiator and its fans can reduce the available length substantially.
Also check:
- the number of rear slots required;
- clearance beneath the card for airflow;
- whether bottom fans interfere;
- support-bracket space;
- side-panel clearance for power cables; and
- whether a vertical mount restricts ventilation.
CPU air-cooler clearance
Tower air coolers have a specified height, while cases publish a maximum CPU-cooler clearance. Leave a small margin rather than matching the figures exactly.
The cooler must also clear tall memory modules, motherboard heatsinks and the first graphics slot. Some dual-tower coolers require the front fan to be raised over the RAM, increasing total height beyond the cooler's basic specification.
Radiator compatibility
A case advertising support for a 360mm radiator does not guarantee that every 360mm cooler will fit in every position. Check radiator length, thickness and width together with fan thickness and motherboard or memory clearance.
Top-mounted radiators can interfere with motherboard power heatsinks or tall RAM. Front-mounted radiators can reduce GPU space. Thick radiators and push-pull fans require substantially more room than an ordinary setup.
Power-supply size and cable room
Mainstream cases normally use an ATX power supply. Compact cases may require SFX or SFX-L. Even within one form factor, PSU length can vary.
Measure the space remaining for modular connectors and cable bends, particularly when a drive cage shares the lower compartment. A power supply may technically fit while leaving cable installation extremely difficult.
Airflow matters more than empty volume
A large sealed case can cool worse than a smaller case with a well-designed mesh intake. Look for a clear path for cool air to enter and warm air to leave.
A sensible starting arrangement is:
- front or bottom fans supplying cool air;
- rear or top fans exhausting warm air;
- filters on major intake positions;
- unobstructed space around the graphics card; and
- cables kept away from fan blades.
More fans are not automatically better. A few well-positioned quiet fans can provide excellent results without unnecessary cost or noise.
Positive and negative air pressure
When filtered intake airflow is slightly greater than exhaust airflow, air tends to leave through unfiltered gaps rather than being pulled inward through them. This can help control dust when filters are maintained.
The result depends on fan speed, restriction and actual vent design—not simply the number of intake and exhaust fans. Clean filters regularly because a clogged intake changes airflow and temperatures.
How many drive bays do you need?
M.2 SSDs mount directly to the motherboard and require no traditional case bay. This means many modern builders need fewer drive cages than older PCs.
Check the case carefully if you need:
- several 3.5-inch hard drives;
- multiple 2.5-inch SATA SSDs;
- an optical drive;
- a card reader; or
- hot-swap storage.
Some drive positions share space with radiators, long PSUs or thick graphics cards and cannot all be used simultaneously.
Front-panel connections
Check that the case provides the USB connections you need and that the motherboard has matching internal headers. A front USB-C port is useless when the motherboard cannot connect to it without an adapter or expansion card.
Also consider microphone and headphone connections, button placement and whether the ports remain accessible when the case sits under a desk.
Cable management and buildability
Good cable management is not just cosmetic. Adequate space behind the motherboard tray, sensible tie points and removable panels make assembly and maintenance easier.
Look for:
- clear routes for motherboard and graphics power;
- room for the CPU power cable above the board;
- reusable straps or strong tie points;
- accessible fan hubs;
- a removable front panel and filters; and
- enough room to close the panel without crushing cables.
Glass, mesh or solid panels?
A mesh front commonly provides less airflow restriction than a sealed glass or solid panel. Tempered-glass side panels showcase components but add weight and require careful handling.
Do not place tempered glass on tile, concrete or stone. Contact with a hard edge can cause it to shatter. Keep the original packaging if the computer may be transported.
Case size and noise
A larger case is not automatically quieter. Noise depends on fan quality, fan speed, airflow restriction, panel vibration and component temperatures.
A ventilated case may allow fans to run slowly, while a heavily sealed case may contain some sound but force fans to work harder. Independent temperature and noise testing is more useful than assumptions based on panel thickness.
Planning for future upgrades
Useful upgrade room includes an additional M.2 slot, enough GPU clearance, spare fan mounts and a PSU that can remain installed. Empty drive bays and enormous radiator space have no value if you will never use them.
Choose realistic flexibility rather than buying a full-tower for imaginary upgrades. A well-designed ATX mid-tower already supports a broad range of future hardware.
Case compatibility checklist
| Part | Measurement to confirm | Common hidden conflict |
|---|---|---|
| Motherboard | Supported form factor and maximum width | Wide E-ATX board covering cable openings |
| Graphics card | Length, height and slot thickness | Front radiator or power-cable bend |
| Air cooler | Total installed height | Raised fan above tall memory |
| Radiator | Length, width and combined thickness with fans | Motherboard heatsinks, RAM or GPU |
| Power supply | Form factor and length | Drive cage and modular cable plugs |
| Storage | Required bay count and locations | Bays removed to fit cooling or PSU |
| Fans | Supported diameters and thickness | Radiators or bottom GPU clearance |
Mistakes to avoid
- Choosing by tower name: Compare exact measurements.
- Checking GPU length only: Height, thickness and power-cable room also matter.
- Ignoring radiator thickness: A supported length does not guarantee complete clearance.
- Assuming every E-ATX board fits: Width varies.
- Building mini-ITX to save money: Compact components can cost more.
- Buying a sealed case for silence: Restricted airflow can increase fan noise.
- Forgetting PSU cable space: Technical fit can still be impractical.
- Counting unused expansion: Do not pay for full-tower capacity you will never need.
- Ignoring weight: Large glass cases can be difficult to move safely.
- Placing the case inside a closed cabinet: Exhaust heat needs somewhere to go.
A practical case-buying process
- Choose the motherboard form factor.
- Record the exact graphics-card dimensions.
- Choose air or liquid CPU cooling and record every measurement.
- Confirm PSU form factor, length and cable requirements.
- Count the storage drives and expansion cards actually required.
- Measure the physical location where the PC will sit.
- Check every shared clearance in the case manual.
- Prefer a ventilated design with removable filters.
- Read independent thermal and noise testing.
- Leave a reasonable installation margin instead of relying on an exact maximum fit.
Frequently asked questions
Is an ATX mid-tower too large for a micro-ATX motherboard?
No. Most ATX cases include mounting positions for micro-ATX boards. The extra internal space can make assembly and future upgrades easier, although the appearance may be less compact.
Will any ATX motherboard fit any ATX case?
Most standard ATX combinations are compatible, but component clearance, connector access and unusual board or case layouts still need checking.
Does a bigger case cool better?
Not automatically. Vent design, fan placement and component airflow matter more than empty volume. A smaller mesh case can outperform a large restricted case.
Is mini-ITX suitable for a first build?
It is possible, but less forgiving. A first-time builder usually has an easier experience with a micro-ATX case or ATX mid-tower.
How much GPU clearance should I leave?
Leave more than the bare minimum so the card can be installed and its power cable can bend safely. Also subtract the space occupied by front fans or radiators.
Do I need a full-tower for a high-end graphics card?
No. Many airflow-focused mid-towers support large flagship cards. Confirm the exact card dimensions, cooling arrangement and cable clearance.
Should I put the PC on the desk or floor?
Either can work if ventilation is clear. Avoid thick carpet beneath a bottom intake, keep the PC away from spills and leave enough access for filters and cables.
