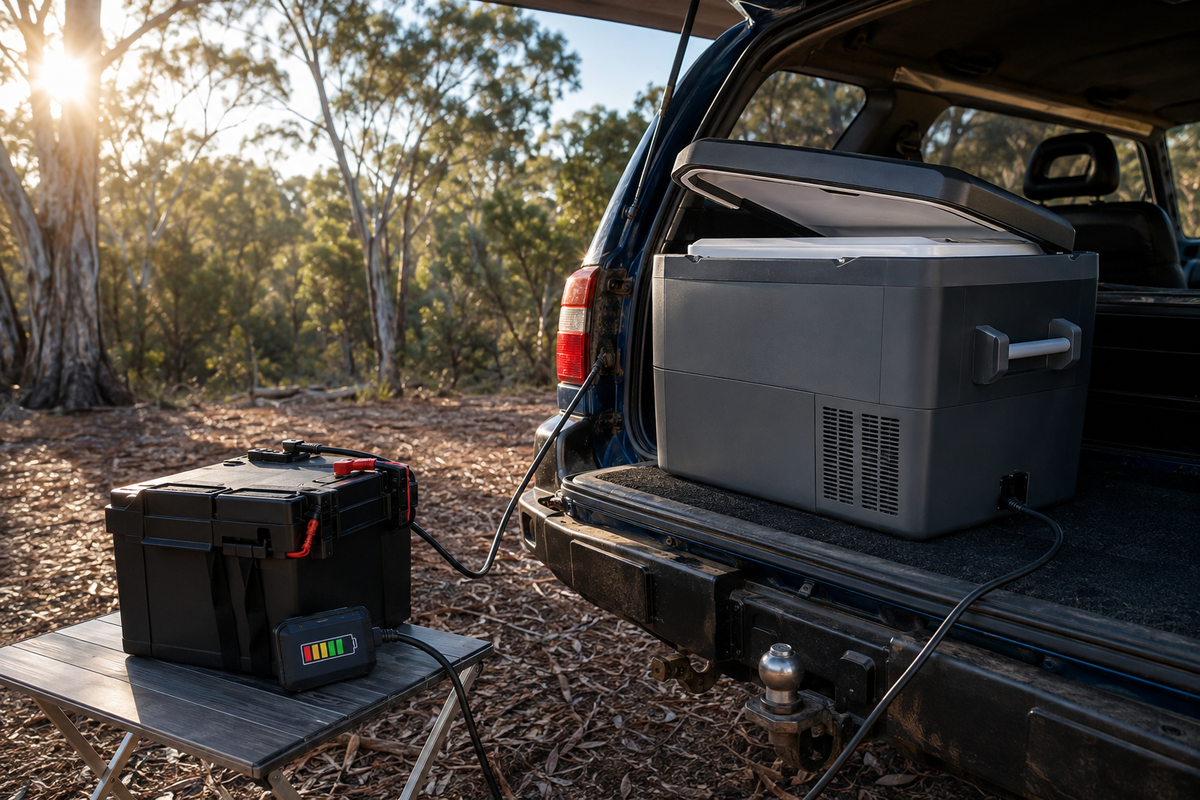

A camping fridge that flattens its battery much sooner than expected may not have a faulty compressor. Hot weather, poor ventilation, warm food, freezer settings and frequent lid opening can keep the compressor running. A tired battery, inadequate charging or voltage loss through thin wiring can produce similar symptoms.
Common causes at a glance
| Possible cause | What you may notice | First check |
|---|---|---|
| Hot weather or direct sunlight | Compressor runs for long periods during the day | Move the fridge into shade and improve airflow |
| Freezer setting | Much heavier use than when operating as a fridge | Confirm the set temperature and compartment mode |
| Poor ventilation | Hot air around the compressor vents | Clear the vents and provide space around them |
| Warm contents or frequent opening | High consumption after restocking or meal preparation | Pre-cool food and reduce unnecessary lid opening |
| Undersized or degraded battery | Battery reaches its limit despite normal fridge behaviour | Verify usable capacity with a proper battery test |
| Voltage drop | Low-voltage warning when the compressor starts | Measure voltage at the fridge under load |
| Battery not fully recharging | Runtime becomes shorter each day | Check charger output and end-of-day state of charge |
| Fridge, seal or sensor fault | Compressor rarely stops in mild conditions | Inspect seals and compare measured temperature with the display |
First establish whether the battery is genuinely flat
A fridge can shut down because the voltage measured at its input has fallen below its protection threshold. That does not always mean the battery has used all its stored energy. A poor plug, loose connection or long undersized cable can cause the voltage at the fridge to collapse whenever the compressor starts.
Check the battery monitor or manufacturer-approved state-of-charge reading rather than relying only on the fridge display. Battery voltage changes with load, charging, temperature and battery chemistry. Lithium batteries in particular can maintain relatively steady voltage across much of their usable range, making a basic voltage reading a poor fuel gauge.
If the battery appears healthy but the fridge reports low voltage, measure at the battery terminals and then at the fridge socket while the compressor is running. A significant difference points towards resistance in the cable, plug, fuse holder or connection.
Use a simple troubleshooting sequence
- Protect the food. Keep the lid closed and move perishable food to another cold appliance or ice-filled esky if safe temperature control cannot be maintained.
- Read the fridge display. Record its temperature, input voltage, battery-protection setting and any error code.
- Check the actual temperature. Place a suitable independent thermometer inside rather than assuming the display is correct.
- Inspect the installation. Check for direct sun, blocked vents, hot trapped air, a partly open lid or a damaged seal.
- Fully recharge the battery. Use a charger with the correct profile for its chemistry and confirm charging completes.
- Test under load. Monitor voltage at the battery and fridge when the compressor starts.
- Measure 24-hour consumption. Use a battery monitor, power station display or suitable DC energy meter.
- Test other loads separately. Lights, inverters, pumps, chargers and communications equipment may be consuming more than the fridge.
Hot conditions make the compressor work harder
The hotter the air surrounding the fridge, the more heat it must remove. A fridge sitting in a closed vehicle, enclosed canopy or direct Australian summer sun can consume far more energy than the same fridge in cool shade.
Move it away from exhausts, cooking equipment and sun-heated metal panels. Open the vehicle or canopy safely to release trapped heat where practical. Keep the manufacturer’s specified clearance around compressor vents.
A fitted fan can help some enclosed installations, but it must move hot air out rather than merely circulate it around the fridge. Follow the fridge and vehicle manufacturer’s installation instructions.
Do not block the ventilation openings
A transit cover can reduce heat entering through the cabinet, but it must be designed for the fridge and leave every ventilation opening clear. Blankets, luggage and tightly packed camping equipment can trap condenser heat and make the compressor run longer.
Feel near the outlet vent while the fridge operates. Warm exhaust air is expected; extreme heat combined with continuous running deserves investigation. Remove surrounding obstructions and see whether compressor cycling improves.
Your temperature setting may be using more energy than expected
Running a portable unit as a freezer generally requires more energy than holding food at normal refrigerator temperature. Setting it colder than necessary increases the temperature difference it must maintain.
For food safety, keep perishable food at or below 5°C and verify this with a thermometer. Do not raise the temperature beyond safe limits simply to save battery power. If frozen storage is unnecessary, make sure the unit has not accidentally been left in freezer mode.
Dual-zone models can use more power when one compartment is frozen, particularly when both zones are frequently opened. Check that each compartment is configured as intended.
Warm food and drinks create a large temporary load
A fridge must remove heat from everything placed inside it. Loading cartons of warm drinks shortly after reaching camp can keep the compressor running for hours. This may look like abnormal consumption even though the fridge is doing exactly what it should.
Pre-cool the fridge on mains power where the manufacturer permits, and chill food and drinks at home before departure. Add only food that can be transported safely, and leave enough room for internal air circulation.
A full fridge can hold temperature well once everything is cold, but packing it so tightly that internal airflow is obstructed may produce uneven cooling.
Check the lid, seal and opening habits
Warm, humid air enters every time the lid is opened. Repeated opening during meal preparation adds heat and moisture, while a lid left slightly open can prevent normal compressor cycling.
Inspect the gasket for dirt, deformation and damage. Clean it according to the manufacturer’s instructions. Check that bottles, baskets or loose cables are not preventing the lid from closing properly.
A simple paper test can identify an obviously loose section: close the lid on a strip of paper and check for consistent resistance when gently pulling it out. This is only a basic check and does not replace the manufacturer’s service procedure.
The battery may have less usable capacity than its label suggests
A battery’s advertised amp-hour rating is not necessarily the amount you should expect to use in the field. Battery chemistry, permitted depth of discharge, age, temperature, discharge rate and condition all influence usable energy.
Lead-acid and AGM batteries are commonly operated with a more conservative depth of discharge to protect service life. Their available capacity also falls as discharge current increases due to the Peukert effect. A suitable deep-cycle lithium battery can generally provide a larger usable portion of its rated capacity, but its battery-management system, temperature limits and manufacturer’s instructions still apply.
A battery can display an apparently normal resting voltage and then sag heavily under load because it has lost capacity or developed excessive internal resistance. If it is old, has been repeatedly over-discharged or cannot pass a controlled capacity test, replacement may be necessary.
Estimate how long the system should run
Use watt-hours when comparing a fridge with different battery chemistries:
For a simplified example, a nominal 12.8V, 100Ah lithium battery with 90% planned usable capacity provides approximately 1,152Wh:
If the entire campsite consumes 480Wh per day, the simplified estimate is about 2.4 days. Allow for conversion losses, battery-management reserves, temperature, ageing and charging inefficiency, so real runtime will normally be lower.
Do not calculate from the fridge compressor’s maximum current as though it runs continuously. Measure its total energy across a representative 24-hour period. Conversely, do not rely on an optimistic manufacturer figure measured under cooler or easier conditions than your campsite.
Voltage drop can mimic rapid battery drain
A portable fridge may draw several amps while its compressor is operating, with a brief change when it starts. Resistance in the supply path causes the fridge-end voltage to fall under this load.
Common trouble points include:
- long or undersized cable;
- loose cigarette-lighter-style plugs;
- corroded sockets or earth connections;
- poorly crimped terminals;
- damaged extension leads;
- loose or overheated fuse holders; and
- connections shared with other heavy loads.
Use the cable size, connector type and fuse protection specified by the fridge or system manufacturer. The fuse protects the cable and must be placed and rated correctly. An auto electrician or qualified 12V installer should correct wiring if you are uncertain.
Check the fridge’s battery-protection setting
Many compressor fridges provide high, medium and low battery-protection settings. A high setting may shut the fridge down earlier to preserve a starter battery. A lower setting may provide more runtime from a suitable auxiliary battery, but it also permits deeper discharge.
Do not automatically select the lowest setting. Match it to the battery chemistry, battery-management system and manufacturer’s recommendations. Changing the setting will not repair voltage drop or restore lost battery capacity.
If the fridge repeatedly stops and restarts, note the voltage at the fridge during both events. Cycling can occur when voltage falls below the cut-out level under load and then recovers once the compressor stops.
Your charging system may not be replacing the energy used
Even an appropriately sized battery will gradually run down if the alternator, DC-to-DC charger or solar system replaces less energy than the campsite consumes. A drive of an hour does not guarantee a full recharge.
Possible charging problems include:
- a charger that is undersized for the daily load;
- incorrect battery-chemistry settings;
- a smart alternator requiring an appropriate DC-to-DC charger;
- voltage drop through long charging cables;
- solar panels affected by shade, heat, dirt or poor orientation;
- a solar regulator reaching its limit;
- charging current being shared with other loads; and
- the battery never reaching a complete charge cycle.
Compare daily energy consumed with daily energy returned to the battery. An accurate shunt-based monitor is generally more informative than watching voltage alone.
Do not blame the fridge for every load
Phone chargers, camp lighting and small pumps may be modest individually, but they add up. Inverters can consume power even when their connected appliance is idle, and appliances such as kettles, induction cookers and coffee machines create much larger loads.
Turn off or isolate other circuits for a controlled fridge-only test. If the battery then performs normally, reconnect equipment one item at a time. Check the battery monitor after each change.
Make sure the monitor captures every current path. Loads or chargers connected directly to a battery terminal on the wrong side of a shunt can make its state-of-charge calculation inaccurate.
When the fridge itself may be faulty
Suspect a fridge problem after confirming adequate battery capacity, proper charging, low-resistance wiring, good ventilation and sensible operating conditions.
Warning signs include:
- the compressor runs almost continuously in mild conditions after the contents are cold;
- the displayed temperature differs substantially from a reliable thermometer;
- the cabinet or seal has visible damage;
- the unit cannot reach its set temperature;
- unusual clicking, repeated starting or error codes continue on a known-good power source; or
- measured consumption is substantially above the manufacturer’s specification under comparable conditions.
Do not open the refrigeration circuit or electrical enclosure. Record the model, serial number, error code, ambient temperature, set temperature, measured internal temperature, supply voltage and 24-hour energy consumption before contacting the manufacturer or an authorised repairer.
How to reduce consumption safely
- Pre-cool the fridge and its contents before leaving home.
- Use shade while maintaining proper ventilation.
- Set the warmest temperature that still keeps food safely cold.
- Use a properly fitted insulated cover that leaves vents unobstructed.
- Organise food so the lid remains open for less time.
- Keep the gasket clean and ensure the lid closes completely.
- Use correctly sized wiring and secure connectors.
- Fully recharge the battery with a compatible charger.
- Monitor watt-hours consumed and returned instead of guessing from voltage.
- Size the battery and solar system for difficult conditions, not only perfect weather.
Frequently asked questions
How long should a 100Ah battery run a camping fridge?
There is no universal answer. Runtime depends on battery chemistry and condition, allowed depth of discharge, fridge consumption, ambient temperature, temperature setting, other loads and charging input. Measure total daily watt-hours and divide usable battery watt-hours by that figure.
Why does my fridge say low voltage when the battery looks charged?
The voltage may be dropping between the battery and fridge while the compressor runs. Thin cable, a loose plug, corrosion or a poor connection can cause this. A weak battery can also show reasonable resting voltage but sag under load.
Does running a fridge as a freezer use more battery?
Usually, yes. Maintaining a much lower internal temperature requires the compressor to remove more heat, especially in hot conditions or when the freezer is opened frequently.
Will a solar panel keep the fridge running indefinitely?
Only if the system consistently produces enough usable energy to cover the fridge and every other load while also recovering from cloudy periods. Panel rating alone does not account for shade, weather, regulator losses, orientation or limited daylight.
Should I select the fridge’s lowest battery-protection setting?
Not automatically. The correct setting depends on the battery, wiring and whether the supply is a starter or auxiliary battery. Follow the fridge and battery manufacturers’ instructions. A lower threshold can allow damaging over-discharge in an unsuitable system.
Can I leave the fridge connected to the starter battery overnight?
That risks leaving the vehicle unable to start. For extended operation, use an appropriately protected auxiliary battery, dual-battery system or portable power station rather than depending on the starting battery.
Sources and further reading
- REDARC: How to run a fridge in your car
- REDARC: Choosing a dual-battery setup for a fridge
- Dometic: Troubleshooting a low-voltage fridge alert
- ARB: Portable fridge battery protection and voltage monitoring
- Victron Energy: Battery capacity and the Peukert effect
- Food Standards Australia New Zealand: Temperature control for potentially hazardous food
